Dense Phase Powder Transfer Systems
Conveying without disturbing Homogeneity of the Blend.

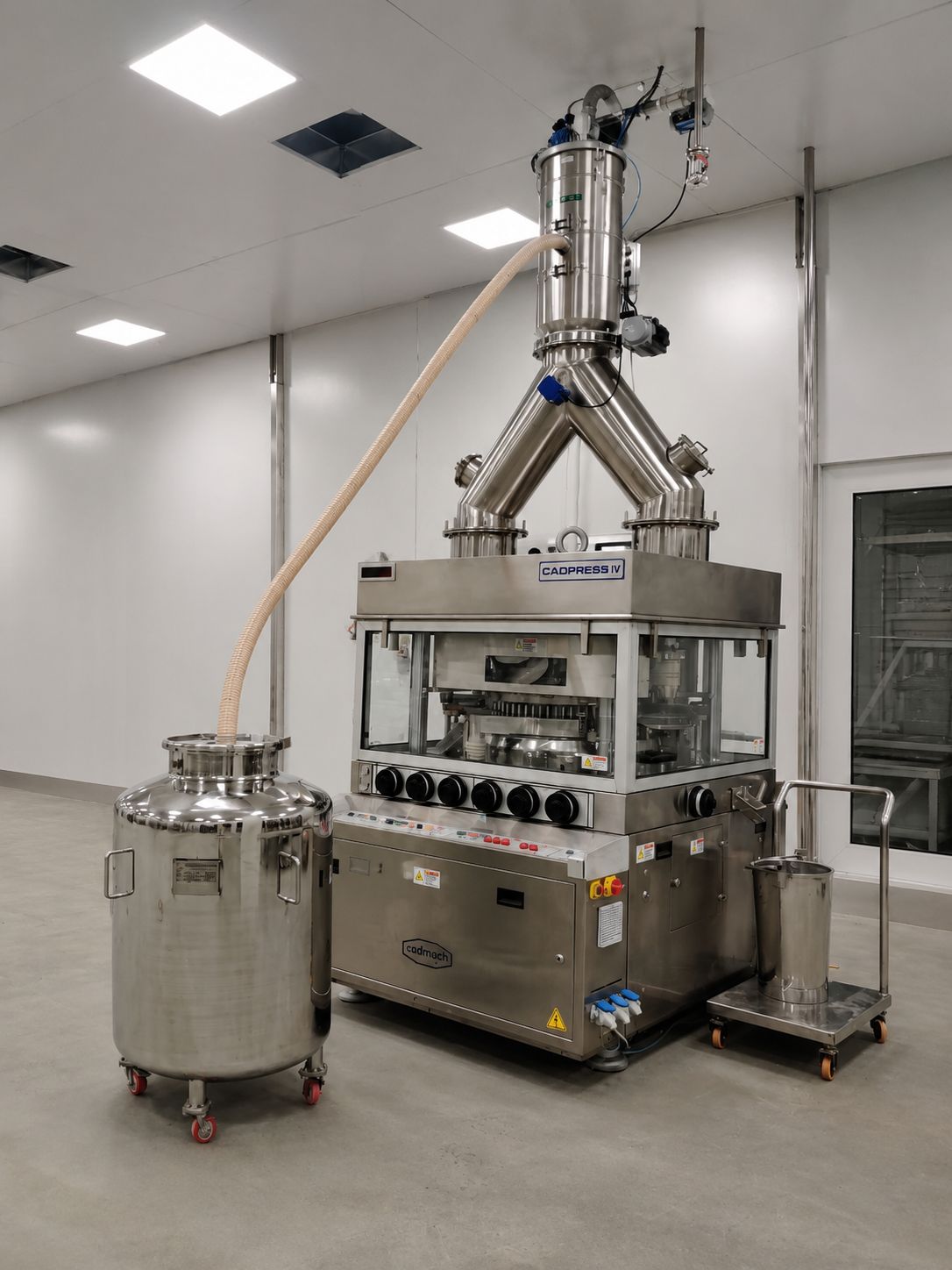

Dustex dense phase powder transfer systems are engineered for the efficient handling of blends/compound in
the final step of the process i.e., compression, machine loading, sachet/pouch/jar filling lines ensuring
dust free, safer, and highly controlled working process. Unlike conventional conveying methods, the system
ensures the transfer velocity of 10-12m/s in the conveying hose maintaining high negative pressure equals to
800mbar with no fluidization during the course of conveying.
This controlled conveying approach minimizes airborne contamination, preserves product integrity. The system
is particularly effective for dry and granulated material where integrity of the blend, hygiene, safety, and
contamination are at prime importance.

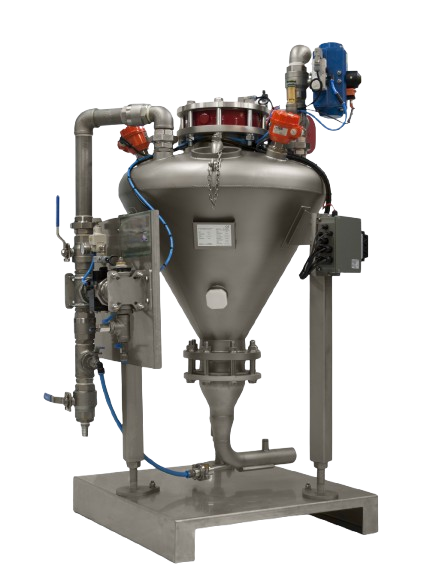

The stainless-steel hopper, manufactured in AISI 316L internally and externally polished is available in
multiple capacities (9L and 15L) and is designed for easy cleaning and hygienic operation. It can be
integrated with high-vacuum pump units available in painted or stainless-steel housings, with multiple power
configurations to suit different process requirements.
Ideal for pharmaceutical, chemical, and food industries, these systems are designed for dust-free,
high-precision material handling. Customized configurations are also available, including load cell
integration, dosing systems, and fully automated process controls tailored to specific customer
requirements.
